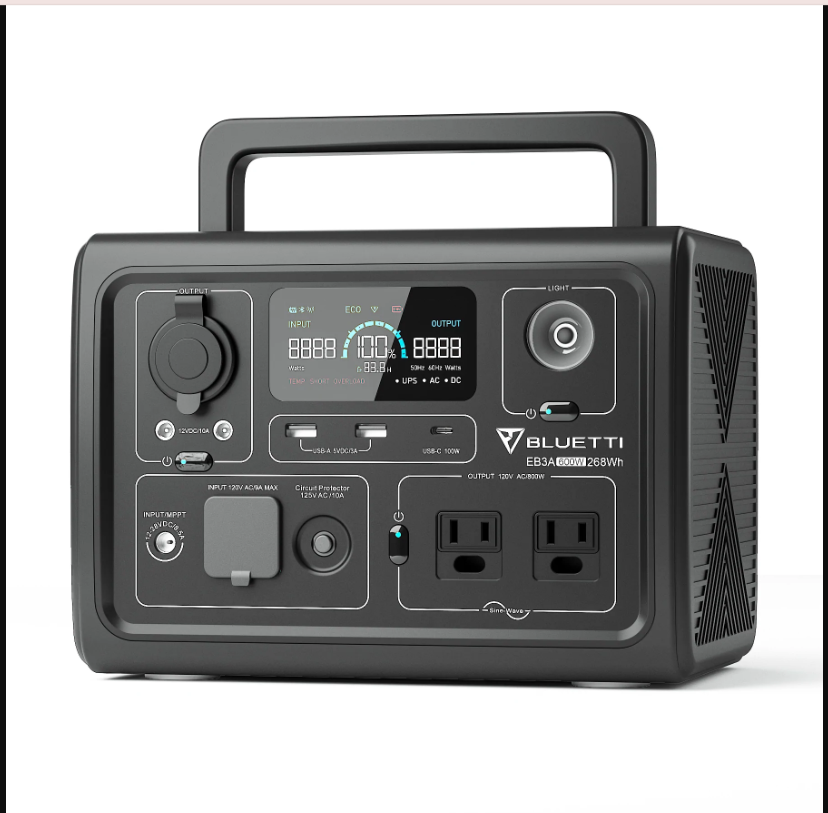

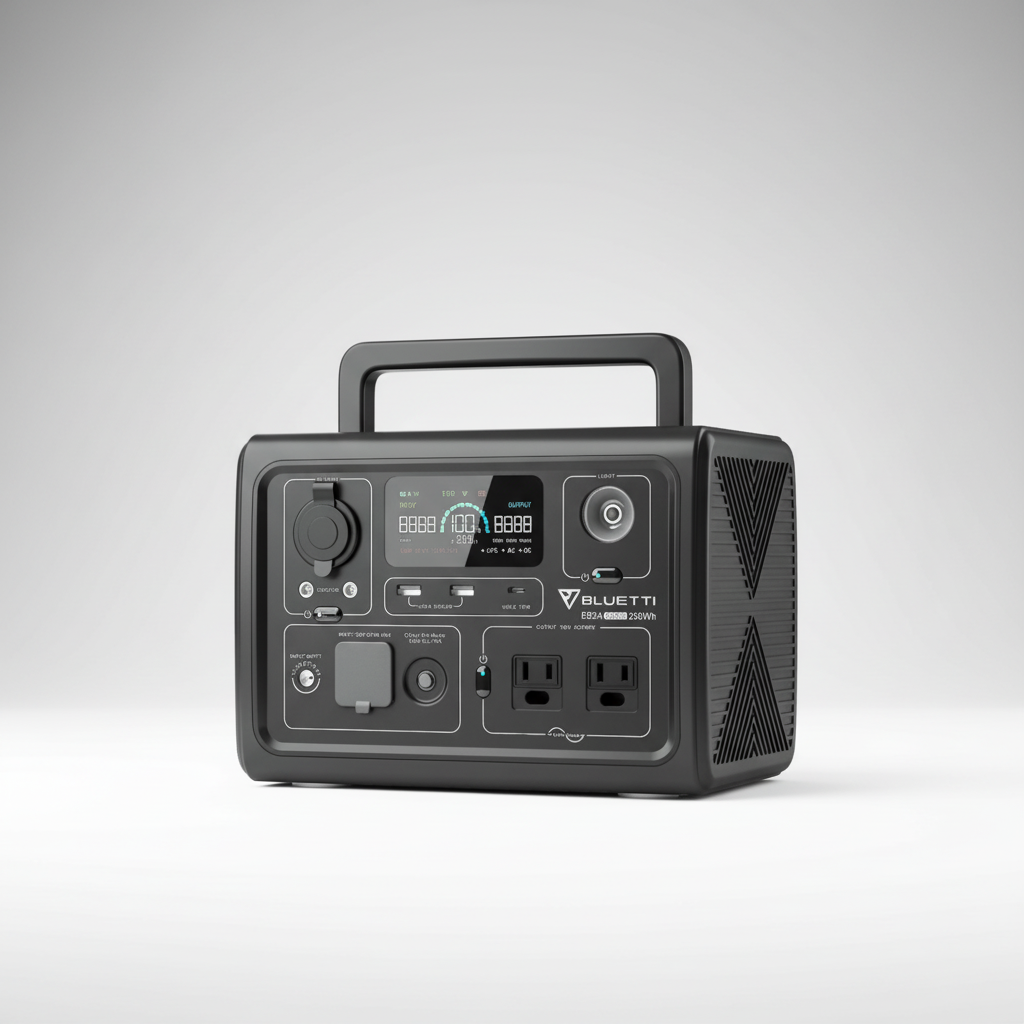

EB3A Portable Power Station

Key Features of the BLUETTI EB3A Portable Power Station

Battery Capacity

268.8Wh (12Ah), LiFePO4 battery (Lithium Iron Phosphate).

Cycle Life

2,500+ cycles to 80% original capacity, ideal for long-term use.

Inverter Output

600W continuous, 1,200W surge (pure sine wave inverter for safe powering of sensitive electronics).

Output Ports

(9 total)

• 2 x 120V/5A AC outlets (600W total, not per outlet).

• 1 x USB-C port (100W max, Power Delivery).

• 2 x USB-A ports (5V/3A, 15W each).

• 1 x 12V/10A car outlet (cigarette lighter port).

• 2 x 12V/10A DC 5521 ports (5.5mm outlets, regulated).

• 1 x 15W wireless charging pad.

Input/Charging Options

• AC charging: 268W (standard mode) or 350W (turbo mode) via included AC cable.

• Solar input: 200W max (12-28VDC, 8.5A, MPPT controller).

• Car input: 12V/24V (100W/200W via cigarette lighter port).

• Dual charging (AC + solar): Up to 430W, achieves 80% charge in ~30 minutes.

Charging Time

• AC (turbo mode, 350W): ~1.3–1.8 hours.

• AC (standard mode, 268W): ~1.5–2 hours.

• Solar (200W): ~1.8–2 hours (optimal conditions).

• Car (100W/200W): ~3.2–3.7 hours (12V) or 1.9–2.4 hours (24V).

• Dual AC + solar (430W): ~1.2–1.7 hours.

Weight & Dimensions

10.14 lbs (4.6 kg), 10.04 x 7.09 x 7.20 inches (255 x 180 x 183 mm), with foldable handle for portability.

Additional Features

UPS Functionality: Provides backup power within 20ms during outages, ideal for sensitive devices like CPAP machines or PCs.

Bluetooth App Control: Monitor and control via BLUETTI app (within 10m range) for settings, ECO mode, and firmware updates.

Display: LED screen shows input/output watts, battery percentage, time to empty/full, active ports, and modes (e.g., UPS).

ECO Mode: Reduces power consumption when no devices are connected.

Safety Features: Battery Management System (BMS), overload protection, short-circuit protection, low battery shutdown.

Silent Operation: Fanless design under low loads, minimal noise during charging or high loads.

Certifications: UL2743, FCC, CE, PSE, RCM, KC, TELEC.

Warranty: 24 months.

Solar Compatibility

Supports up to 200W solar input (12-28V, 8.5A) with MC4 to 8mm adapter included. Recommended BLUETTI PV120 or PV200 solar panels.
